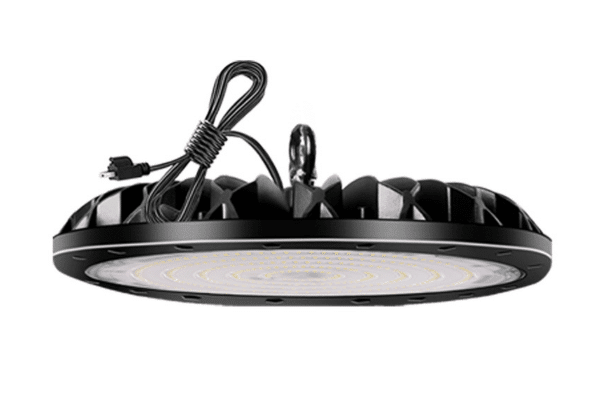

XD5 Series UFO High Bay Light

Top XD5 UFO High Bay Light Supplier in China

Engineered for reliability and efficiency, the XD5 series is a line of industrial-grade lighting solutions. Featuring a rugged die-cast aluminum body and advanced LED technology, each UFO high bay light in this series is designed for consistent performance and longevity. Ideal for upgrading a warehouse, factory, or workshop, the XD5 provides a powerful, super bright energy saving lamp that can cut energy costs by up to 80% compared to traditional lighting.

INSTANT QUOTE

Advanced Technology

Strict Quality Standards

Diverse Product Range

Global Reach

High-Performance Illumination: What Is the XD5 UFO High Bay Light?

Fixtures that use advanced LED modules in a compact, circular form factor to efficiently light large areas are known as UFO high bay lights. The XD5 model is engineered to deliver powerful, uniform illumination in spaces with high ceilings, replacing traditional, bulky fixtures. These lights enable superior visibility and safety by reducing energy consumption and minimizing shadows. They offer exceptional brightness, durability, and most importantly, reliability, which are critical attributes for industrial, commercial, and recreational facilities.

Key Features of XD5 UFO High Bay Light

The XD5 UFO High Bay Light offers key advantages like superior energy efficiency, exceptional durability, high-performance illumination, and intelligent controls. It significantly reduces electricity costs, provides brilliant light, and is built to last, making it ideal for a wide range of industrial and commercial applications.

Energy Efficiency

Utilizes advanced LED technology to deliver high lumen output while minimizing power consumption, drastically cutting energy bills.

Superior Durability

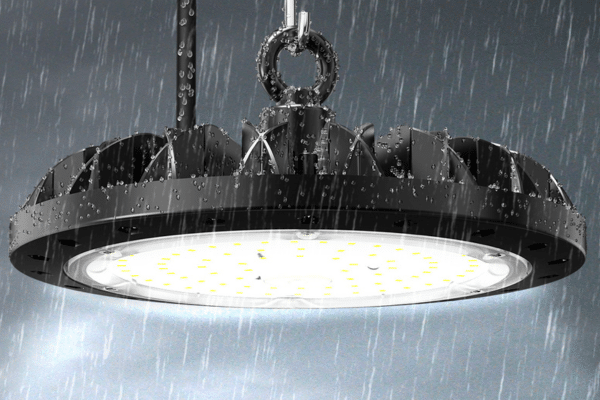

Built with a rugged die-cast aluminum housing and an IP65 rating for long-lasting performance in demanding environments.

Exceptional Performance

Provides bright, uniform, and flicker-free illumination with a high Color Rendering Index (CRI) for improved visibility and safety.

Smart Control & Versatility

Features 0-10V dimming capabilities and optional motion sensors for customized lighting control across diverse applications.

What Is The Difference Between XD5 UFO And Traditional High Bay Lights?

Energy & Lifespan: XD5 lights use efficient LEDs for lower power consumption and longer life; traditional lights require more energy and frequent bulb changes.
Performance & Light Quality: XD5 provides instant, flicker-free illumination with superior color accuracy; traditional lights have warm-up times and lower light quality.
Design & Maintenance: XD5 features a compact, durable, and maintenance-free design; traditional fixtures are bulky and need regular lamp and ballast replacements.

How To Choose The Right XD5 UFO High Bay Light For Your Application?

Analyze Your Space: Determine ceiling height, square footage, and required light levels (foot-candles) to calculate the necessary total lumens.
Select Correct Wattage & Optics: Choose the right wattage and beam angle (e.g., 60°, 90°, 120°) to ensure even light coverage for your specific layout.
Evaluate Control Features: Consider adding options like 0-10V dimming or motion sensors to optimize energy usage and operational flexibility.

Explore Our XD5 UFO High Bay Light

XD5-UFO-100W

The XD5-UFO-100W delivers exceptional brightness and energy efficiency for spaces with moderate ceiling heights. It is the perfect one-for-one replacement for traditional 250W metal halide fixtures, offering superior light quality and a significant reduction in energy costs. Its compact, durable design makes it ideal for workshops, retail stores, and smaller warehouses, ensuring a safe and productive environment.

XD5-UFO-200W

Engineered for high-ceiling applications, the XD5-UFO-200W provides intense, uniform illumination for large-scale commercial and industrial areas. This model offers remarkable lumen output, making it perfect for manufacturing facilities, gymnasiums, and distribution centers. Its robust construction ensures reliable performance and longevity, improving both visibility and operational efficiency.

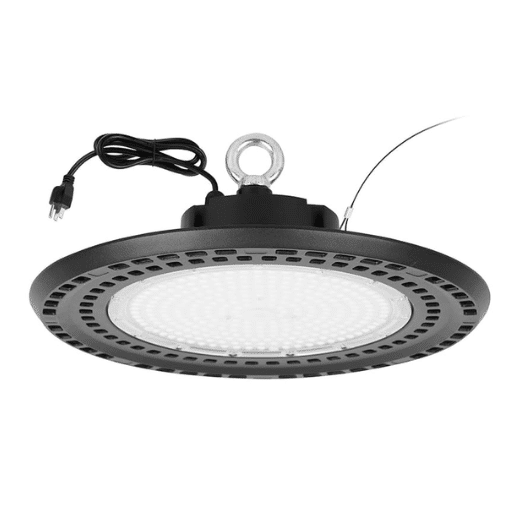

XD5-UFO-300W

The XD5-UFO-300W is the ultimate lighting solution for vast spaces with ultra-high ceilings. It provides maximum light output to brilliantly illuminate aircraft hangars, convention centers, and heavy industrial settings. Combining raw power with advanced thermal management, this fixture guarantees peak performance and durability, ensuring clarity and safety in the most challenging environments.

Parameter	XD5-UFO-100W	XD5-UFO-200W	XD5-UFO-300W
Power Consumption	100W	200W	300W
Luminous Flux (Lumens)	10000LM	20000LM	30000LM
Luminous Efficacy	150 lm/W	150 lm/W	150 lm/W
Color Temperature (CCT)	6500K	6500K	6500K
Color Rendering Index (CRI)	>80	>80	>80
Beam Angle	90°	90°	90°
Lifetime	50,000hrs	50,000hrs	50,000hrs
Input Voltage	100-277V AC	100-277V AC	100-277V AC
Power Factor	>0.95	>0.95	>0.95
Dimming	0-10V Dimmable	0-10V Dimmable	0-10V Dimmable
Housing Material	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum
IP Rating	IP65 (Wet Location Rated)	IP65 (Wet Location Rated)	IP65 (Wet Location Rated)
IK Rating	IK08	IK08	IK08
Operating Temperature	-40°F to 122°F (-40°C to 50°C)	-40°F to 122°F (-40°C to 50°C)	-40°F to 122°F (-40°C to 50°C)
Dimensions (Diameter x H)	~11.0" x 6.5"	~13.0" x 7.0"	~15.0" x 7.5"
Weight	~8.5 lbs	~12.0 lbs	~16.0 lbs
Certifications	UL Listed, DLC Premium	UL Listed, DLC Premium	UL Listed, DLC Premium
Warranty	5 Years	5 Years	5 Years

Top Applications of XD5 UFO High Bay Light

Warehouses & Distribution Centers

Delivers powerful, uniform illumination for high-stack aisles and loading docks, improving operational safety and inventory management accuracy.

Manufacturing Facilities

Provides brilliant, glare-free light over production lines and assembly areas, enhancing worker productivity and quality control.

Gymnasiums & Arenas

Ensures consistent, flicker-free lighting for fast-paced sports and events, offering excellent visibility for both players and spectators.

Retail & Exhibition Halls

Creates a bright and welcoming atmosphere in large retail spaces and showrooms, highlighting products and improving the customer experience.

Why Choose Our XD5 UFO High Bay Light

Superior Energy Efficiency: Our advanced LED technology and high luminous efficacy drastically reduce energy consumption, leading to significant operational cost savings and a lower carbon footprint.
Exceptional Light Performance: The XD5 series delivers brilliant, uniform, and flicker-free illumination with a high CRI, enhancing visibility, safety, and productivity in any high-ceiling environment.
Robust and Durable Construction: Built with a die-cast aluminum housing and an IP65 rating, our lights are engineered to withstand dust, moisture, and impact, ensuring long-term reliability in demanding conditions.
Advanced Control and Versatility: Standard 0-10V dimming and optional motion sensors provide flexible lighting control, allowing you to tailor output to specific needs and maximize energy savings.
Certified Quality and Reliable Support: With UL and DLC Premium certifications and a 5-year warranty, you are guaranteed a product that meets the highest standards for safety and performance, backed by our expert technical support.

What Our Client Says

Understand from our clients what they say about doing business with us and the unique value addition we provide.

We retrofitted our entire warehouse with the XD5 UFO lights, and the difference is night and day. The illumination is incredibly bright and uniform, which has significantly improved safety for our forklift operators. Plus, our energy bills have dropped by over 60%. A fantastic upgrade!

Sarah Mitchell

WAREHOUSE MANAGER

As a contractor, I've installed many high bay lights, but the XD5 series stands out for its build quality and performance. The installation is straightforward, and the 0-10V dimming feature gives my clients the flexibility they need. These lights are durable, reliable, and my go-to choice.

James Carter

ELECTRICAL CONTRACTOR

Discover the Power of XD5 UFO High Bay Light

How is a ufo led high bay light different from a traditional, long-style High Bay Light?

A ufo led high bay light is more compact, lighter, and often more efficient than traditional linear (long-style) high bay lights. Its circular design provides a wide, even light spread, reducing shadows, while traditional fixtures are better suited for long, narrow aisles.

What is involved in the ufo high bay light installation process for the XD5?

The ufo high bay light installation is designed to be straightforward. The fixture typically comes with a standard hook or ring mount for hanging from a chain or a U-bracket for surface mounting. It’s a simple process of securing the mount and wiring the fixture, but we always recommend it be performed by a qualified electrician.

Can I use the XD5 as a heavy-duty Shop Light?

Absolutely. The XD5 is an excellent choice for a Shop Light, especially in larger workshops, garages, or manufacturing facilities. Its durable construction (IP65 rating) protects it from dust and moisture, and its high lumen output ensures brilliant illumination for detailed work.

What makes the XD5 one of the best ufo high bay light options available?

The XD5 is considered one of the best ufo high bay light models due to its combination of high luminous efficacy (150 lm/W), robust die-cast aluminum construction, IP65 rating, standard 0-10V dimming, and certifications like UL and DLC Premium. It offers professional-grade performance and reliability.

Are these ufo led shop lights suitable for residential garages?

While designed for commercial use, ufo led shop lights like the 100W XD5 model can be an excellent choice for residential garages or workshops with high ceilings (12-15 ft or more). They provide exceptional brightness that is far superior to standard consumer lighting.

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Installation and Maintenance of High Bay Lights with Sensors

Motion Sensor UFO High Bay Lights: Energy Savings Guide

The lighting of vast areas, such as warehouses, factories, and gymnasiums, involves the use of energy-efficient solutions to be on the safe side. The traditional lighting options, in most...

December 10, 2025

LED High Bay Installation Guide: Step-by-Step for Professionals

LED high bay lights must be correctly installed for an ideal performance and long-lasting durability in the harshest industrial and commercial environments. The guide is intended for professionals looking...

November 28, 2025

High Bay UFO Lights: The Future of LED High Bay Lighting

The lighting industry goes through rapid development, and yet one innovation that has grabbed the spotlight is the high bay UFO lights. Constructed to function with style and efficiency,...

August 26, 2025

High Bay Light Rebates and Incentives Guide 2025

Energy efficiency is now an important aspect that cannot be opposed by industries especially when it comes to high bay lights. When it comes to that, they can be...

January 17, 2026

Get Your XD5 UFO High Bay Lights Today

With the XD5 UFO High Bay Light, achieve the highest levels of brightness, efficiency, and quality while upgrading your facility. Our fixtures guarantee superior performance and longevity for your space, making them ideal for industrial, commercial, and retail applications. Experience the XD5 difference—don’t wait. Request a quote or shop today!

Get in Touch Today

Frequently Ask Questions

Q: What mounting options are included with the XD5 ufo led high bay light fixture?

A: The XD5 ufo led high bay light fixture typically includes a standard eye-hook for easy suspension mounting. A versatile U-bracket for surface or wall mounting is also available as an optional accessory.

Q: Do I need special wiring for the ufo high bay light installation?

A: The XD5 is designed to work with standard AC voltages (e.g., 100-277V). The ufo high bay light installation requires standard 3-wire connections (hot, neutral, ground). If you plan to use the 0-10V dimming feature, two additional low-voltage control wires will be needed.

Q: At what ceiling heights is a High Bay Light recommended?

A: A High Bay Light like the XD5 is generally recommended for ceilings 15 feet (about 4.5 meters) or higher. The specific wattage you need will depend on the height:
100W: 15-20 ft
200W: 20-30 ft
300W: 30+ ft

Q: Is the XD5 a dimmable ufo led high bay light?

A: Yes, all XD5 models are dimmable. They come standard with 0-10V dimming capabilities, allowing you to adjust the brightness level when used with a compatible 0-10V dimmer switch or lighting controller.

Q: How do I determine how many led round ufo high bay light fixtures I need?

A: To determine the number of led round ufo high bay light fixtures, you need to consider your space’s square footage, ceiling height, and desired brightness level (foot-candles). For an accurate estimate, we recommend using an online lighting calculator or consulting with our support team for a professional lighting layout.

Q: What does the IP65 rating mean for this Shop Light?

A: An IP65 rating means the XD5 Shop Light is completely protected from dust ingress (the ‘6’) and can withstand low-pressure water jets from any direction (the ‘5’). This makes it ideal for use in dusty or damp environments like workshops, barns, or covered outdoor areas.

Q: Can I add a motion sensor to my ufo led shop lights?

A: Yes, the XD5 ufo led shop lights are compatible with optional motion sensors. These can be added to provide on/off or dimming control based on occupancy, further increasing energy savings and convenience.

Q: What kind of warranty comes with the XD5 UFO High Bay Light?

A: The XD5 UFO High Bay Light is backed by a comprehensive 5-year manufacturer’s warranty, covering defects in materials and workmanship. This ensures peace of mind and protects your investment.
